Product Description

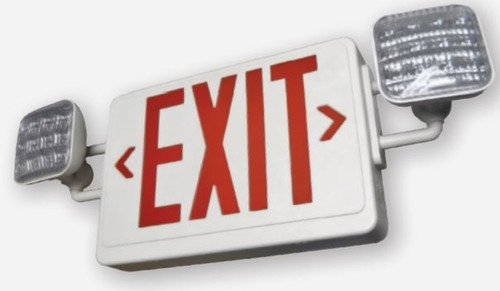

Exit & Emergency Combo Double face
ILLUMINATION
• Long lasting, efficient, ultra bright white LED lamp heads. 3.6W (3 LEDs x 1.2 watt) per head.
• Adjustable LED lamp heads provide optimal center-to-center spacing.
Double sided
ELECTRICAL
• Dual 120/277 voltage.
• Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).
• 6V long life, maintenance free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to LED board and lampheads for minimum 90-minute emergency illumination.
• Fully automatic solid state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
HOUSING
• 5VA fl ame retardant, UV stabilized polycarbonate housing and lens with EZ snap-out Chevron directional indicators.
• Corrosion resistant enclosure with engineering grade silicone gasket.
• Die-cast aluminum mounting canopy included for top or end mount with universal K/O pattern on back plate for wall mount.
OPTIONS
• SDT: Self-diagnostic feature performs monthly, biannual, and annual tests to ensure reliable operation and meet electrical and life safety codes.
• TP: Tamper-proof hardware helps prevent unauthorized access to the unit.
• CW: Optional internal heater and battery blanket for extreme cold temperature applications (-20°C – 50°C).
• Custom: Signs available with requested "special" wording.
WARRANTY/LISTING
• Five year warranty on all electronics and housing. Battery pro-rated for five years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
• UL listed for wet locations (0°C – 50°C).
