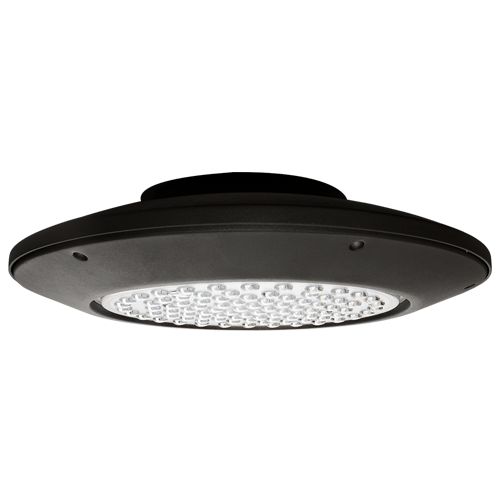

The Jemm VAF30 Aeroform Architectural Round Canopy is available in Type II, III, IV or V distributions designed to replace HID lighting systems up to 400w MH or HPS. Typical area lighting applications include retail centers, industrial parks, schools and universities, public transport and airports, office buildings and medical facilities. Mounting heights of 12 to 30 feet can be used based on light level and uniformity requirements.
- Housing: Die Cast and Sand Cast Aluminum Housing, Integral Heat Sinking. Includes 3' Cord.
- Lumens: 5,495
- Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750; IP65
- Finish: Bronze or White Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
- Lens: Clear Polycarbonate Vandal-Resistant Array Lens with Integral Optics. Gasketed to Seal LED Array
- Mounting Options: Surface Mount Model (NM) Includes Easy-Hang Bracket Allowing One-Person installation, Fits Standard 4" Electrical Box. Adjustable Height Trunnion (T) and Pendant (PA) Models are Shipped Ready For Field Installation of the Mount. Mounts are Shipped in a Separate Carton.
- Wattage: 37w Array: 37w, System: 41w; (70-150w HID Equivalent)
- Driver: Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 6kV. 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps.
- Controls: Fixtures Ordered with Factory-Installed Motion Sensor Controls are Internally Wired for Switching and/or 1-10V Dimming Within the Housing. Remote Direct Wired Interface of 1-10V Dimming is Not Implied and May Not Be Available, Please Consult Factory. Fixtures are Tested with LEPG Controls and May Not Function Properly With Controls Supplied By Others. Fixtures are NOT Designed for Use with Line Voltage Dimmers.
- Warranty: 5-Year Warranty for -40°C to +50°C Environment.
