Product Description

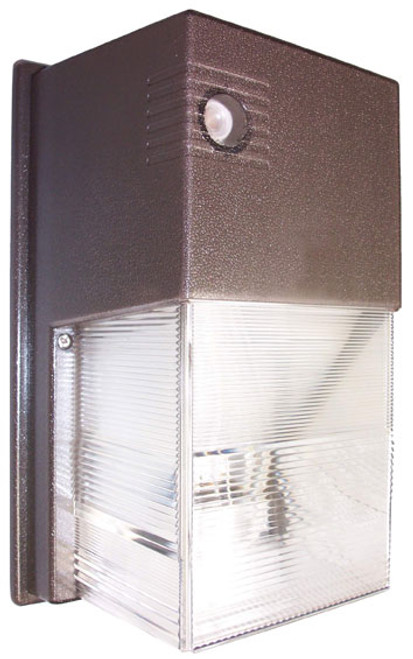

23 Watt LED Small Wallpack Glass Lens
- Jemm Lighting LED Wall Pack. Suitable for entry ways, parking areas, walkways, perimeter security and area lighting.
- Wall mount to a height of 8'-15' and a spacing of 2-3 mounting heights .
- Housing: Die Cast Gasketed Aluminum Front Frame and Housing with ½" Coin Plugs, Nickel Plated Stainless Steel Hardware.
- Listing & Ratings: CSA: Listed for Wet Locations, ANSI/UL 1598, 8750; IP65 Sealed LED Compartment.
- Finish: Textured Architectural Bronze Powdercoat Finish Over a Chromate Conversion Coating. Custom Colors Available Upon Request.
- Lens: Prismatic Clear or SoftLED Prismatic Borosilicate Glass Lens Mounting Options: Mount Directly Over a 4˝ Recessed Outlet Box, or Use ½˝ Surface Conduit or Optional Wall Mount Plate.
- EasyLED LED: Aluminum Boards Wattage: Array: 16w, System: 17.7w; (100w HID Equivalent) Array: 22.7w, System: 27.6w; (100w HID Equivalent)
- Driver: Electronic Driver, 120-277V, 50/60Hz or 347-480V, 50/60Hz; Less Than 20% THD and PF>0.90. Standard Internal Surge Protection 2kV. 0-10V
- Dimming Standard for a Dimming Range of 100% to 10%, Dimming Source Current is 150 Microamps.
